Quincy Compressor Launches New QGV and QSI 150, 175, 200

The Latest from C.H. Reed

March 30, 2020

Quincy Compressor Launches New QGV and QSI 150, 175, 200

SHARE THIS POST

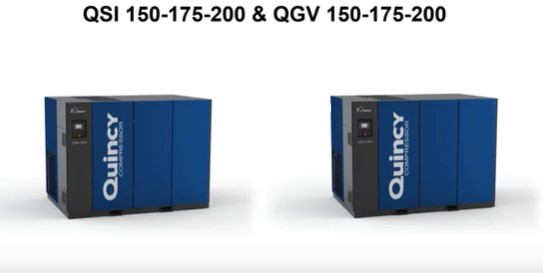

New Quincy QSI and QGV

Earlier this month, Quincy Compressor launched their new line of QGV & QSI 150, 175, and 200 HP rotary screw air compressors. What’s really cool about the new QGV-175 (994 CFM @ 100 PSI) is that it produces more air with less power compared to the Legacy QGV-200 (976 CFM @ 100 PSI). Overall, Quincy’s goals with the launch of these new ranges are to reduce risks, reduces costs, and increase simplicity for end-users. Some notable highlights for this new range can be found below:

  • Reliability:
    • Exclusive Q-Airend for 100K hours and flex drivetrain
    • Hot-Side Control – Protects the airend from low load and high humidity
  • Total Cost of Ownership:
    • The new Q-Airend features exclusive bearings and oil channels to allow 10+ years of operation without the need to replace the bearings
    • Designed for easier and faster maintenance (hinged doors, detachable panels, swing-out separator lid, cooler slide rail, oil sampling need valve, etc.)
    • Long consumable life: 4K hour inlet filter / 8K hour oil filter / 8K hour separator
    • 5 to 18% efficiency gains
    • ½ the oil capacity – New QSI-200 takes 23 gallons vs old QSI-1000 46 gallons (that’s a couple of thousand dollars in oil savings a year)
  • Unit conversion based on CFM:
    • Old QSI-675/750 = New QSI-150
    • Old QSI-925/1000 = New QSI-200
    • Old QGV-150 = New QGV-150
    • Old QGV-200 = New QGV-175
    • Old QSI-1175 @100PSI = New QGV-200
  • Standard Features Include:
    • Canopy
    • TEFC Drive Motor
    • Q-Airend (100K+ bearing life)
    • Flexible gearbox with drive coupling
    • High-dust inlet filter
    • Power outage restart
    • NEMA 1 electrical enclosure
    • Q-Control touch with ICONS
    • Phase monitor
    • Oversized coolers
    • Premium centrifugal blower fans
    • Royal Blue 10 Year Warranty

To learn more about the new Quincy QGV & QSI 150, 175, and 200 HP rotary screw air compressors, including additional options, specs, and key features, contact C.H. Reed today!
